The ExEditors Library, a 100% ATL based component suite, contains 16 data edit controls in a single ActiveX control. Each editor can have a three-state check box associated and an unlimited number of buttons on the left or right side. Each button can display an icon or a picture and can have its own tool tip. Most of the editors are mask based.

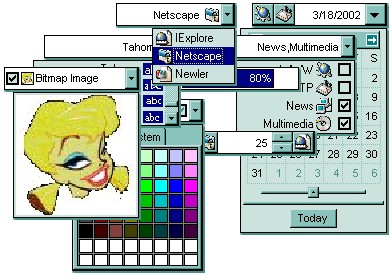

The suite of editors includes:

• None: Provides a standard label control
• Edit: Provides a standard text edit control
• DropDown: Provides an intuitive way for users to select values from a list presented in a drop down window. Each item can display an icon and a caption. The DropDown allows custom strings as well.
• DropDownList: Provides an intuitive interface for your users to select values from pre-defined lists presented in a drop-down window. Each item can have an icon associated. The DropDownList editor has no edit control associated.
• Spin: Allows your users to view and change numeric values using a up/down button.
• Memo: Provides a multiline edit control.
• CheckList: Provides an intuitive way to view and combine one or more values from a pre-defined list presented in a drop down window. Each item has a check box attached, and can display an icon and a caption.
• Date: Provides an efficient way for selecting dates for a drop down calendar.
• Mask: You can use the Mask editor to enter any data that includes literals and requires a mask to filter characters during data input.
• Color,ColorList: Provides an elegant way for selecting colors from a dropdown window. The Color drop down window contains two tabs the pallette tab shows a grid of colors, while the system tab shows the current windows color constants.
• Font: Presents the list of fonts into a drop down window. Each item into the drop down window has a preview image for the font selected.
• Picture: Provides an elegant way for displaying fields of Picture type. The Picture data editor can display embedded images stored in OLE Object fields.
• Button: Associates single button to a mask edit control.
• ProgressBar: Displays your value using a progress bar style.
• PickEdit: Provides an intuitive interface for your users to select values from pre-defined lists presented in a drop-down window. Each item can have an icon associated.
• LinkEdit: Allows your application to edit and display hyperlink addresses.
